Level Control Relay

level control relay

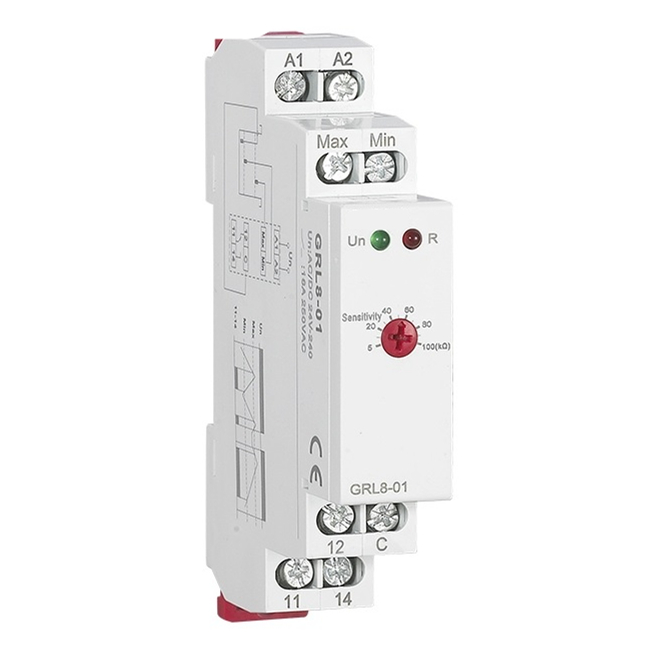

Product description: GRL8 DIN rail SPDT Liquid Level Control Switch Water Level Float Switch Electronic Control Relay
INQUIRY

Applications
-Designed for monitoring level in wellss, basins, reservoirs, tanks.....
Function Features
-In one device you can choose the following configurations:
- 2 level control mode
- 1 level control mode
-Choice of function PUMP UP, PUMP DOWN.
-Adjustable time delay on the output (0.1 - 10s).
-Sensitivity adjustable by a potentiometer (5-100kΩ).
-Galvanically separated supply voltage AC/DC 24-240V.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

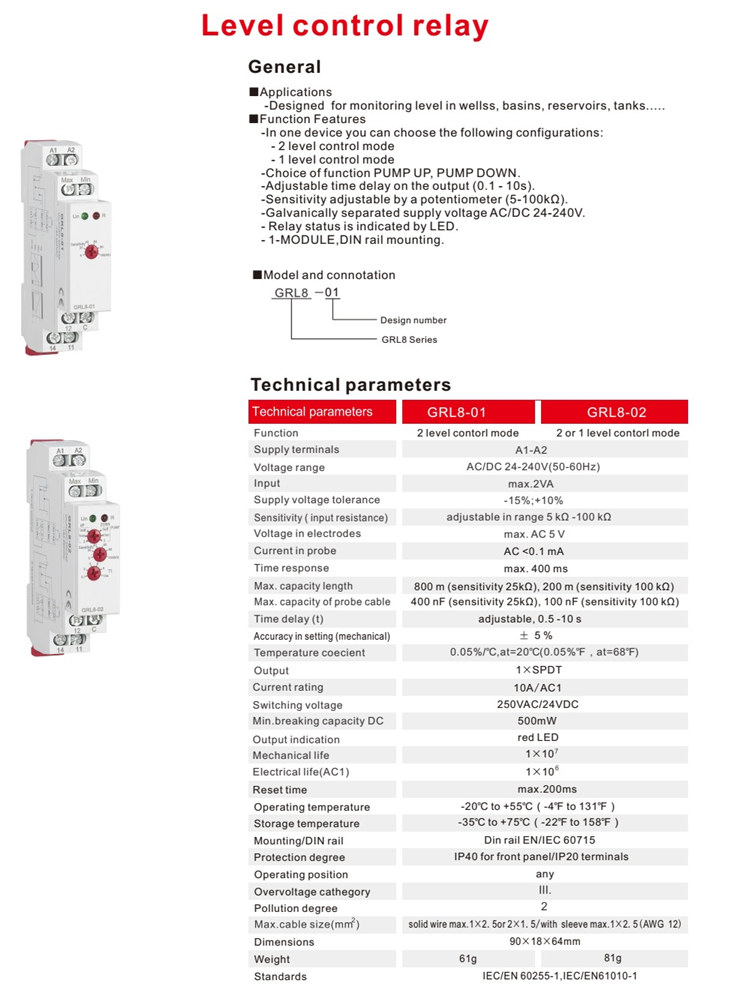

Technical Data

Electrical features

Product Name	Level Control Relay
GRL8-01	2 Level Control Mode (Adjust Sensitivity)
GRL8-02	2 or 1 Level Control Mode (Pump up/down)
Function	Water Pump Controller
Voltage Range	AC/DC24V-240V
Output	1 SPDT
Supply Terminals	A1-A2
Supply Voltage Tolerance	-15% +10%
Time Setting	Potentionmeter
Supply Indication	Green LED
Output Indication	Red LED
Rated Frequency	50/60HZ
Rated Current	16A/AC1
Protection Degree	IP40 for front Panel / IP20 for Terminals
Weight/pcs	0.1KG/PCS
Standard	EN 61812-1,IEC60947-5-1
Certifications	CE CB CCC TUV
Warranty/guarantee	18months
MOQ	1PCS
